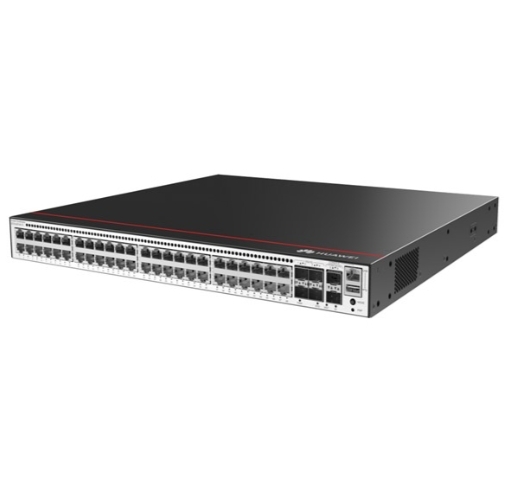

S5735-S48T4XE-V2 48*GE Base-T Ports 4*10GE SFP+ Ports 2*12GE Stack Ports Without Power Module

Model

CloudEngine S5735-S48T4XE-V2

Fixed port

• 48 x GE Base-T ports, 4 x 10 GE SFP+ports, 2 x 12GE stack ports

Dimensions (H x W x D)

• 43.6 mm x 442 mm x 420 mm

Chassis height

• 1 U

Chassis weight (including packaging)

• 6.9 kg

Power supply type

• 80 W AC

• 180 W AC

• 600 W AC

• 1200 W DC

Rated voltage range

• AC input: 100 V AC to 240 V AC, 50/60 Hz

• High-Voltage DC input: 240 V DC

• DC input: -48 V DC to -60 V DC

Maximum voltage range

• AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz

• High-Voltage DC input: 190 V DC to 290 V DC

• DC input: -38.4 V DC to -72 V DC

Maximum power consumption

• 71.92 W (2*80W AC)

• 90.67 W (2 *180W AC)

• 139.78 W (2* 1200W DC)

Noise

• Under normal temperature (sound power): 43.8dB (A)

• Under high temperature (sound power): 59.5dB (A)

• Under normal temperature (sound pressure): 31.8dB (A)

Long-term operating temperature

• 0-1800 m altitude: -5°C to +50°C

• 1800-5000 m altitude: The operating temperature reduces by 1ºC every time the altitude increases by 220 m.

Storage temperature

• -40°C to +70°C

Relative humidity

• 5% to 95% (non-condensing)

Surge protection specification (service port)

• NA

Surge protection specification (power port)

• AC power port: ±6 kV in differential mode, ±6 kV in common mode

• DC power port: ±2 kV in differential mode, ±4 kV in common mode

Heat dissipation

• Air-cooled heat dissipation and intelligent speed adjustment
