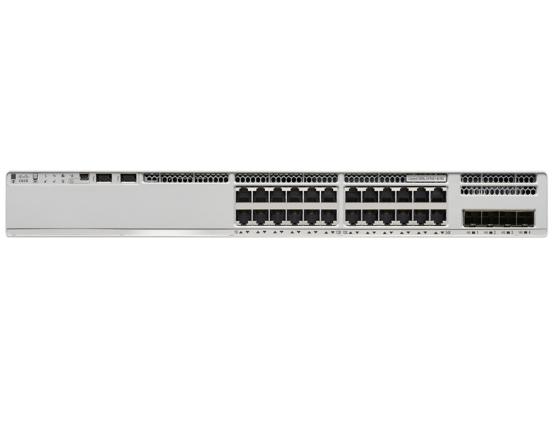

C9200-24T-E Catalyst 9200 24-port Data Switch Network Essentials 1RU Fixed Switch

Name: C920024TE Catalyst 9200 24port Data Switch Network Essentials 1RU Fixed Switch
Brand: Cisco
Price: 1 USD

Quality C9200-24T-E Catalyst 9200 24-port Data Switch Network Essentials 1RU Fixed Switch for sale

Brand Name : Cisco

Model Number : C9200-24T-E

Certification : CE

Place of Origin : China

Payment Terms : T/T,Western Union

Delivery Time : 1~3 days

Model : C9200-24T-E

SKU Type : Essentials (E)

Series : Catalyst 9200 Series

Licensing : Essentials (pre-installed)

Port Configuration : 24 × 10/100/1000BASE-T (RJ45), 4 × 1G SFP Uplinks (C9200-NM-4X1G module included)

Warranty : 1 Year

Contact Now

C9200-24T-E Overview

The Cisco C9200-24T-E is a high-performance enterprise switch designed to handle robust network management needs. As part of the Catalyst 9200 series, the C9200-24T-E stands out for its versatility and advanced features. This Cisco switch is engineered to deliver seamless and reliable connectivity, making it an essential component for any enterprise network setup.

C9200-24T-E Catalyst 9200 24-port Data Switch Network Essentials 1RU Fixed Switch

C9200-24T-E Specification

Model

C9200-24T-E

Brand

Cisco

Series

Catalyst 9200 Series

Form Factor

1RU Fixed Switch

SKU Type

Essentials (E)

Port Configuration

24 × 10/100/1000BASE-T (RJ45), 4 × 1G SFP Uplinks (C9200-NM-4X1G module included)

Switching Capacity

96 Gbps

Forwarding Rate

72 Mpps

Dimensions (H × W × D)

Base: 1.73 × 17.5 × 13.8 in (4.4 × 44.5 × 35.0 cm); With FEP/Fan: 1.73 × 17.5 × 15.4 in (4.4 × 44.5 × 39.1 cm)

Power Supply

125W AC (PWR-C5-125WAC or PWR-C6-125WAC)

Input Voltage

100–240V AC, 50/60Hz

PoE Support

Not supported (non-PoE model)

MAC Addresses

32,000

VLANs

4,096 active

IPv4 Routing

16,000 routes

IPv6 Routing

8,000 routes (software-assisted)

QoS

8 queues per port, DSCP/CoS marking

Licensing

Essentials (pre-installed)

Minimum IOS-XE Version

16.12.1

Key Protocols

Static Routing, RIPv1/v2, OSPF, EIGRP (limited scale), Basic QoS and ACLs

Operating Temperature

32°F to 104°F (0°C to 40°C)

Humidity

5% to 90% non-condensing

Altitude

Up to 10,000 ft (3,000 m)

MTBF

587,800 hours (~67 years)

Hot-Swappable Modules

Fan tray, power supplies

Management

CLI (Cisco IOS-XE), Web UI (Catalyst 9200 Web Interface), SNMP v2c/v3, NetFlow (hardware-accelerated)

Compliance

Safety: UL 60950-1, EN 60950-1; EMC: FCC Part 15 Class A, EN 55032 Class A; RoHS: Compliant

Power Consumption (No PoE, 115V AC)

Idle: 33.09W; 50% Traffic: 36.20W; 100% Traffic: 42.27W

Power Consumption (No PoE, 230V AC)

Idle: 33.15W; 50% Traffic: 36.06W; 100% Traffic: 42.01W

Acoustic Noise (with AC Power Supply)

LpA: 42 dB typical, 45 dB max; LwA: 5.3 B typical, 5.6 B max
